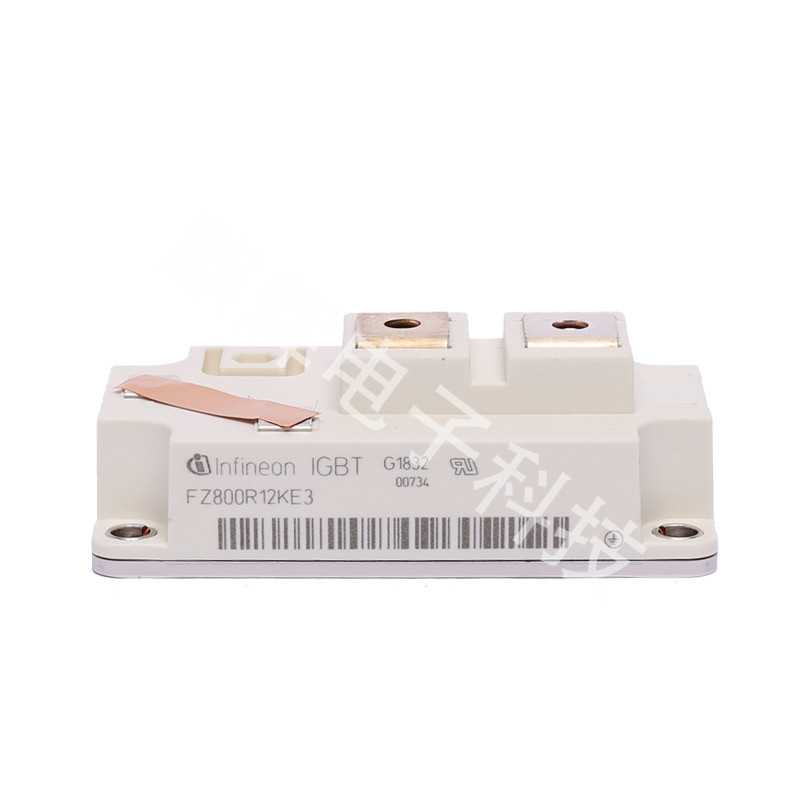

FZ800R12KE3
Parametrics

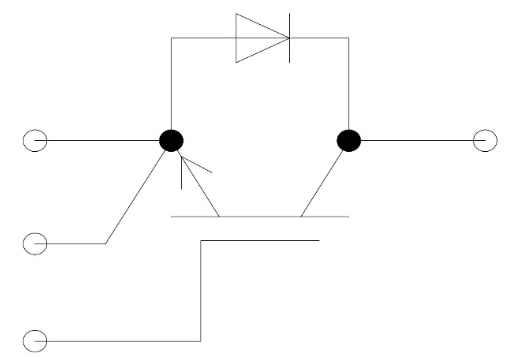

Parametrics FZ800R12KE3 Configuration Single switch Dimensions (width) 61.4 mm Dimensions (length) 106.4 mm Housing 62 mm IC(nom) / IF(nom) 800.0 A IC max 800.0 A Qualification Industrial Technology IGBT3 - E3 VCE(sat) (Tvj=25°C typ) 1.7 V VF (Tvj=25°C typ) 2.2 V Voltage Class 1200.0 V
