TT122N18KOF
指標(biāo)參數(shù)

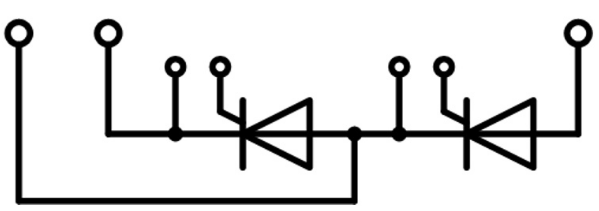

Parametrics TT122N18KOF (diT/dt)cr [A/μs] (@DIN IEC 747- 6) 100.0 Configuration SCR / SCR Phase Control Housing Power Block 34 mm IFAVM/TC / ITAVM/TC [A/°C] (@180° el sin) 122/85 IFSM / ITSM [A] (@10ms, Tvj max) 2950.0 RthJC [K/W] (@180° el sin) 0.2 Tvj [°C] max 125.0 VDRM / VRRM [V] 1800.0 VDRM/ VRRM (V) 1800.0 V VT0 [V] (@Tvj max) max 1.0 rT [m?] (@Tvj max) 2.15 ∫I2dt [A2s · 103] (@10ms, Tvj max) 43.5
