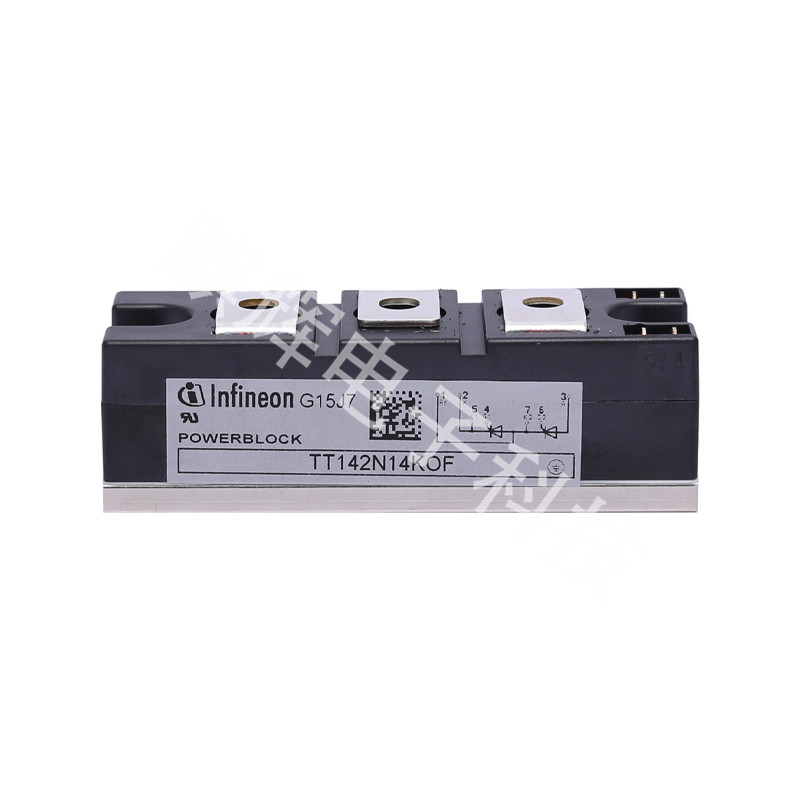

TT142N14KOF
指標(biāo)參數(shù)
Parametrics TT142N14KOF (diT/dt)cr [A/μs] (@DIN IEC 747- 6) 150.0 Configuration SCR / SCR Phase Control Housing Power Block 34 mm IFAVM/TC / ITAVM/TC [A/°C] (@180° el sin) 142/85 IFSM / ITSM [A] (@10ms, Tvj max) 4100.0 RthJC [K/W] (@180° el sin) 0.22 Tvj [°C] max 125.0 VDRM / VRRM [V] 1400.0 VDRM/ VRRM (V) 1400.0 V VT0 [V] (@Tvj max) max 0.9
