TD215N22KOF
指標(biāo)參數(shù)

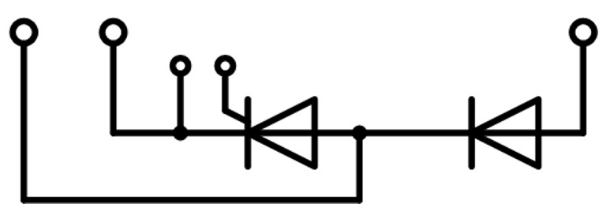

Parametrics TD215N22KOF (diT/dt)cr [A/μs] (@DIN IEC 747- 6) 100.0 Configuration SCR / Diode Phase Control Housing Power Block 50 mm IFAVM/TC / ITAVM/TC [A/°C] (@180° el sin) 215/85 IFSM / ITSM [A] (@10ms, Tvj max) 6300.0 RthJC [K/W] (@180° el sin) 0.13 Tvj [°C] max 125.0 VDRM / VRRM [V] 2200.0 VDRM/ VRRM (V) 2200.0 V VT0 [V] (@Tvj max) max 0.95 rT [m?] (@Tvj max) 0.92 ∫I2dt [A2s · 103] (@10ms, Tvj max) 198.0
