TZ740N22KOF
指標參數(shù)

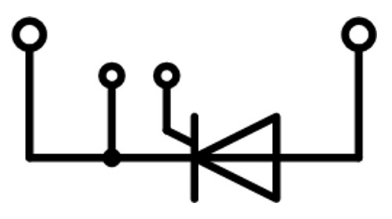

Parametrics TZ740N22KOF (diT/dt)cr [A/μs] (@DIN IEC 747- 6) 200.0 Configuration Single SCR Phase Control Housing Power Block 70 mm IFAVM/TC / ITAVM/TC [A/°C] (@180° el sin) 740/85 IFSM / ITSM [A] (@10ms, Tvj max) 26500.0 RthJC [K/W] (@180° el sin) 0.042 Tvj [°C] max 125.0 VDRM / VRRM [V] 2200.0 VDRM/ VRRM (V) 2200.0 V VT0 [V] (@Tvj max) max 0.82 rT [m?] (@Tvj max) 0.17 ∫I2dt [A2s · 103] (@10ms, Tvj max) 3500.0
